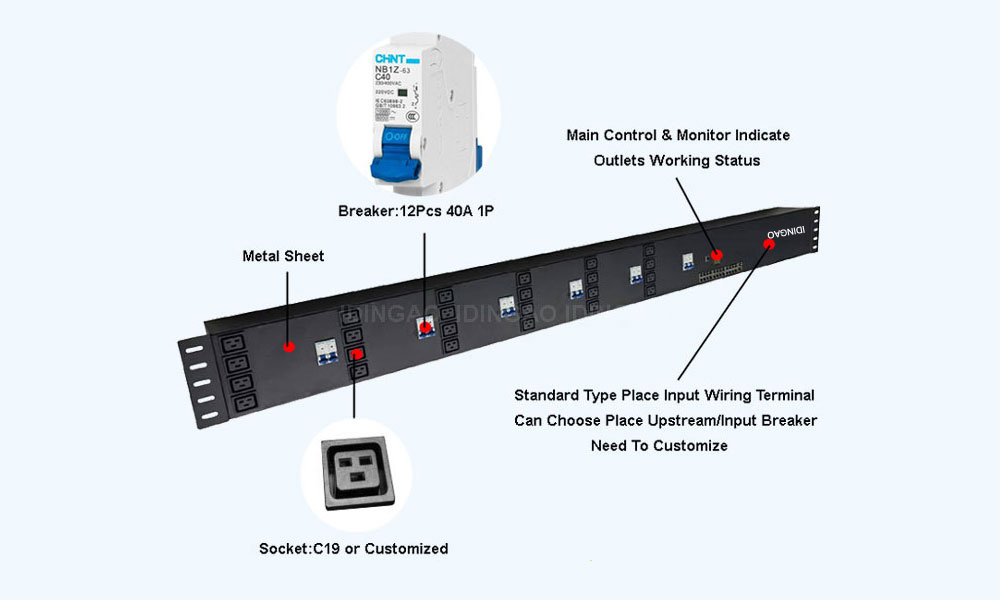

24 Ports C19 20A/Port Smart PDU
Customized service is available,the MOQ=100pcs.
|
TCP/IP Remote Control 24 Ports C19 20A/Port Smart Power Distribution Unit (PDU) |
|
|
Input Voltage
|
120V 3phase(LLLG)to 208V single phase |
|
240V Single phase(LNG) to 240V single |
|
|
415v 3phase(LLLNG) to 240V single phase |
|
|
480V 3phase(LLLNG) to 277V single phase |
|
|
Input Connector |
150A x 4 wires+300A Naught wire(or input breaker optional,price difference) |
|
Frequency |
50/60Hz |
|
Total Current |
Max 480A of breaker,Max 20A per outlet |
|
Rating Output Voltage |
208~300VAC |
|
Socket Standard |
C19(can be changed as client request) |
|
Outlet Quantity |
24Pcs C19 (can be changed as client request) |
|
Breaker |
12Pcs 40A CHNT 1P breaker with UL or CE (optional) |
|
Wire Specification |
UL certification,with flame retardant function |
|
Shell Material |
Metal sheet |
|
Dimensions |
L x W x H=1845*160*125mm |
|
Net Weight |
25kg |
