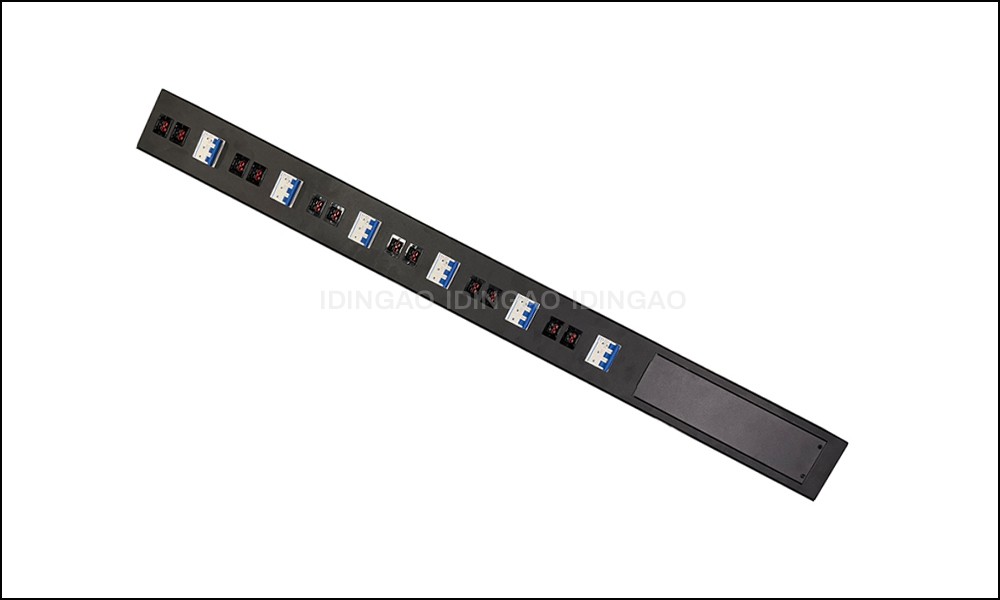

12 Ports Three Phase Power Distribution Unit
NOTE:
1.In mass production,we will have white line to indicate which breaker
to control which outlet.
2.This model is special for bitmain T21 series.if need PDU for
whatsminer or Avalon with anderson plug,we will need to change plug
speical for them.
|
Voltage |
120V 3phase(LLLG)to 208V single phase 240V Single phase(LNG) to 240V single 380V 3phase（LLLNG）to 220V single phase 415v 3phase(LLLNG) to 240V single phase 480V 3phase(LLLNG) to 277V single phase. |
|
Input Connector |
200A 5 blocks |
|
Frequency |
50/60Hz |
|
Total Current |
Max 480A of breaker,each outlet Max 20A |
|
Rating Output Voltage |
208~300VAC |
|
Max Output Power For Each Outlet |
Under 208V single phase,Max 4160W per outlet Under 240V single phase,Max 4800W per outlet Under 277V single phase ,Max 5540W per outlet |
|
Total Output Power |
Max 5540W x 12 |
|
Socket Standard |
Bitmain T21 anderson plug |
|
Outlet Quantity |
12 |
|
Breaker |
32A 3P breaker 6 units |
|
Dimensions |
140*13*9cm |
|
Net Weight |
14KG |
|
Wire Specification |
4AWG+10AW |
|
Shell Material |
Iron |
