24 Ports C13 15A/Port Non-Smart PDU
Customized service is available,the MOQ=100pcs.
|

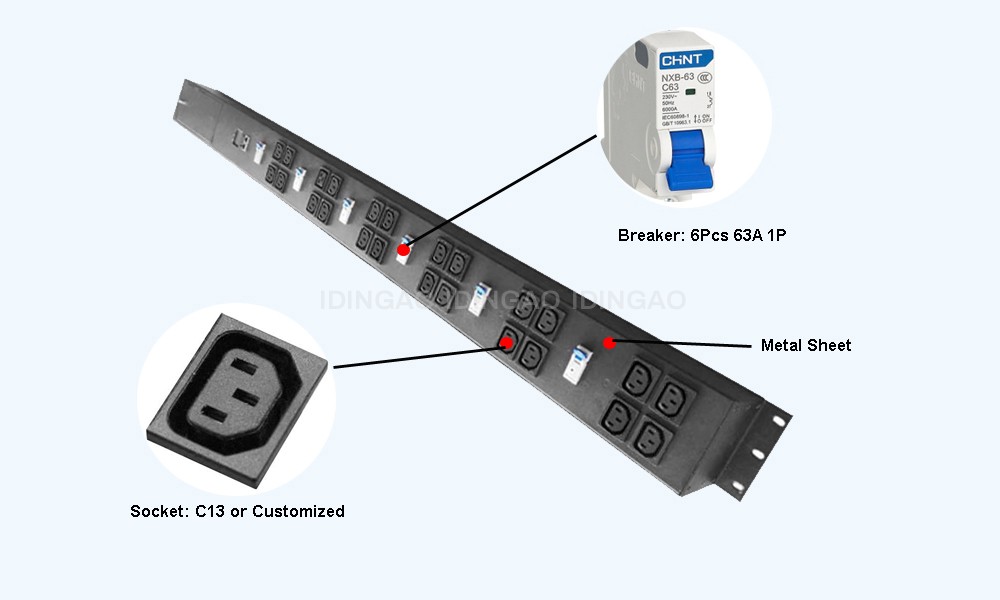

24 Ports C13 15A/Port Non-Smart Power Distribution Unit (PDU) |
|
|
Input voltage
|
120V 3phase(LLLG)to 208V single phase |
|
240V Single phase(LNG) to 240V single |
|
|
415v 3phase(LLLNG) to 240V single phase |
|
|
480V 3phase(LLLNG) to 277V single phase |
|
|
Input Connector |
125A x 4 wires+300A naught wire |
|
Frequency |
50/60Hz |
|
Total Current |
Max 378A of breaker,Max 15A per outlet |
|
Rating Output Voltage |
208~300VAC |
|
Max Output Power For Each Outlet
|
Under 208V,Max 3120W per outlet |
|
Under 240V,Max 3600W per outlet |
|
|
Under 277V,Max 4155W per outlet |
|
|
Total Output Power |
Max 4155W x 24 |
|
Socket Standard |
C13 (can be changed as client request) |
|
Outlet Quantity |
24Pcs C13 (can be changed as client request) |
|
Breaker |
6Pcs 63A CHNT 1P breaker with UL or CE (optional) |
|
Wire Specification |
UL certification,with flame retardant function |
|
Shell Material |
Metal sheet |
|
Dimensions |
L x W x H=740 x 90 x 180mm |
|
Net Weight |
10.2kg |
