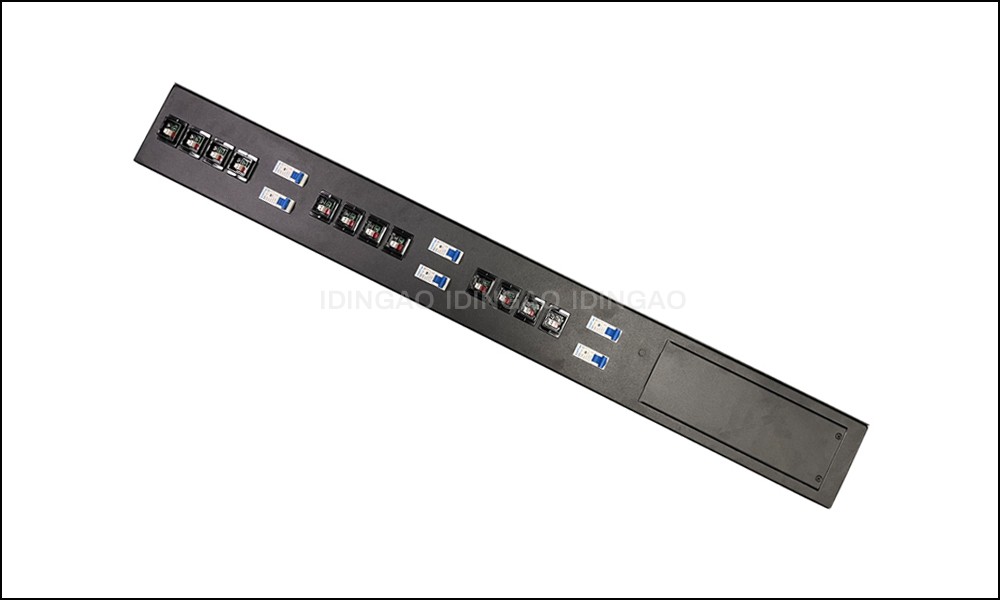

12 Ports Single Phase Power Distribution Unit

NOTE:

1.In mass production,we will have white line to indicate which breaker

to control which outlet.

2.This model is special for bitmain S21 series.if need PDU for

whatsminer or Avalon with anderson plug,we will need to change plug

speical for them.

Voltage	120V 3phase(LLLG)to 208V single phase 240V Single phase(LNG) to 240V single 380V 3phase（LLLNG）to 220V single phase 415v 3phase(LLLNG) to 240V single phase 480V 3phase(LLLNG) to 277V single phase.
Input Connector	100A 5 blocks
Frequency	50/60Hz
Total Current	Max 240A of breaker,each outlet Max 20A
Rating Output Voltage	208~300VAC
Max Output Power For Each Outlet	Under 208V single phase,Max 4160W per outlet Under 240V single phase,Max 4800W per outlet Under 277V single phase,Max 5540W per outlet
Total Output Power	Max 5540W x 12
Socket Standard	Bitmain T21 anderson plug
Outlet Quantity	12
Breaker	40A 1P breaker 6 units
Dimensions	10312.59.5cm
Net Weight	9KG
Wire Specification	4AWG+10AW
Shell Material	Iron
