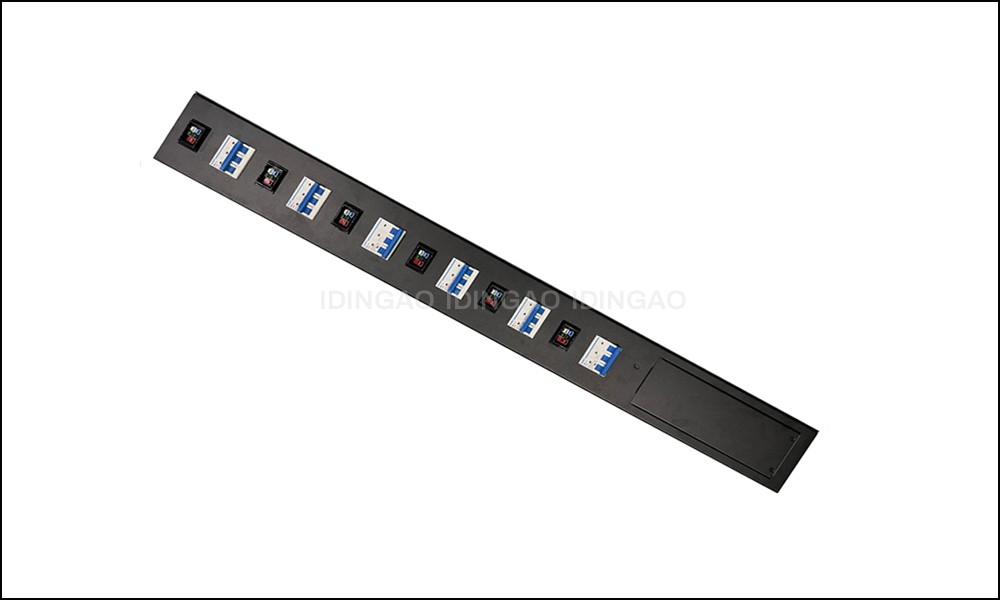

6 Ports Three Phase Power Distribution Unit
NOTE:
1.In mass production,we will have white line to indicate which breaker
to control which outlet.
2.This model is special for bitmain T21 series.if need PDU for
whatsminer or Avalon with anderson plug,we will need to change plug
speical for them.
|
Voltage |
346-480V input voltage. |
|
Input Connector |
100A 5 blocks |
|
Frequency |
50/60Hz |
|
Total Current |
Max 96A of breaker,each outlet Max 15A |
|
Rating Output Voltage |
208~300VAC |
|
Max Output Power For Each Outlet |
Under 208V single phase,Max 3120W per outlet |
|
Total Output Power |
Max 12465W x 12 |
|
Socket Standard |
Bitmain T21 anderson plug |
|
Outlet Quantity |
6 |
|
Breaker |
16A 3P breaker 6 units |
|
Dimensions |
109*12*9.5cm |
|
Net Weight |
10.5KG |
|
Wire Specification |
4AWG+10AW |
|
Shell Material |
Iron |
